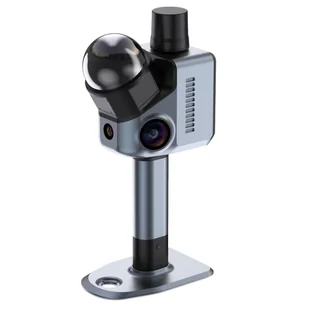

3DMakerpro Hawk LiDAR 3D Scanner 1 5cm Precision 484 000pts/s 360° × 63 5° FOV 80-140m Range Dual 13MP Cameras IP65 Me 1297500EUDF

Highlights

Sub-centimeter Ultra-High Accuracy

Boasts 1.5cm accuracy at 10m, 3cm at 20m, and 5cm at 40m, paired with multi-echo LiDAR technology, meeting the rigorous measurement needs of professional scenarios such as engineering surveying and architectural modeling.

High-Speed Dense Point Cloud Acquisition

Generates 484,000 points per second—twice the rate of standard LiDAR scanners. Rapidly captures detailed information of complex environments (e.g., industrial plants, building facades) to significantly improve work efficiency.

Rugged, Portable & Outdoor-Ready Design

Features an IP65-rated metal body (waterproof, dustproof, and impact-resistant) and weighs only 900g. Supports handheld, tripod, and vehicle-mounted setups, adapting to harsh/complex operating environments like construction sites, railways, and underground parking lots.

Long Battery Life & Convenient Connectivity

Equipped with a 12,000mAh quick-swap battery and supports 65W fast charging, delivering up to 1 hour of continuous operation. Dual Type-C ports Wi-Fi 5, combined with a 3.9-inch AMOLED touchscreen, enable real-time monitoring, seamless data transfer, and on-site operation.

High-Definition Imaging & Accurate Tracking

Comes with dual 13MP 1-inch sensor cameras to reproduce lifelike color textures. Built-in NIR (Near-Infrared) tracking module ensures precise positioning even in low-light or repetitive geometric environments, while HDR mode (3-5 EV) adapts to mixed lighting scenarios.

Specification

General	Brand: 3DMakerpro Type: LiDAR 3D Scanner Model: Hawk Color: Gray & Black
Specification	Accuracy: 1.5cm @ 10m; 3cm @ 20m; 5cm @ 40m Scan Radius: 40–70m (measured at >10% or >80% reflectivity) Scan Range: 80–140m Scan Angle: Horizontal 360°, Vertical 63.5° Point Cloud Frequency: 484,000 points/second Laser Light Source: 905nm Eye Safety: Class 1 (IEC60825-1:2014), Eye safe HDR Mode: Supports 3–5 EV Color Texture: 13MP 1-inch sensor camera ×2; Single camera NIR visual tracking system Data Interface: USB-Type C ×2 Network Support: Wi-Fi 5 Screen: 3.9" Output Formats: 3D Color Point Cloud (PLY); 3D Gaussian Splatting (PLY); 3D Colored Polygonal Model (OBJ); 3D Panoramic Tour Data (OBJ) Built-in Battery: 12,000mAh (supports 1 hour of work; external power supply supported) Configuration: 8 Cores 2.4GHz, 32GB (Supports TF card expansion) Recommended Configuration - Processor: Intel Core i7 Recommended Configuration - Memory: 64GB RAM Recommended Configuration - Graphics Card: NVIDIA RTX 4060, 16GB VRAM Minimum Configuration - Processor: Intel Core i7 Minimum Configuration - Memory: 32GB RAM Minimum Configuration - Graphics Card: NVIDIA RTX 3060, 12GB VRAM Note: Gaussian Splatting is only supported on NVIDIA GPUs
Weight & Size	Product Weight: 0.9kg Product Size: 120x145x85mm Package Size: 400x390x170mm
Package Contents	1 x Hawk LiDAR 3D Scanner 1 x Handle 1 x PD Power Adapter 1 x 1.5M Dual-Ended Type-C Cable 1 x TF Card 128G 1 x USB-C to USB-A Adaptor
