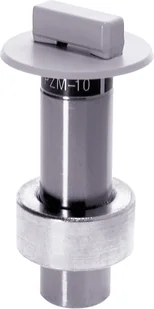

The PZM10 and PZM10 LL, part of the Pressure Zone Microphone® line, are designed for security, surveillance, and conference-table use. The special housing design allows the microphones to be mounted into tables, walls or ceilings easily and inconspicuously.
Using Pressure Zone Microphone® technology, the PZM10 and PZM10 LL are highly sensitive and deliver a wide and smooth frequency response. Thus the PZM10 and PZM10 LL are characterized by excellent clarity and a consistent pickup anywhere around the mic.
Hemispherical polar pattern
for clear, intelligible pickup of speech
Low-profile, cylindrical design
perfect for wall or tabletop installation
Choice of mic level output or line-level output (PZM10 LL)
for optimized level matching
PZM10 powered by 12V - 48V phantom power, XLR connector
connects to all standard mixers with phantom power out
PZM10 LL powered by 12V - 24V/DC, unterminated wires
for the most flexible connectivity
TECHNICAL SPECIFICATION
General
- Audio frequency bandwidth 80 to 20000 Hz
- Equivalent noise level 26 dB-A
- Sensitivity 2.5 mV/Pa
- Signal to Noise 68 dB-A
- Recommended load impedance 2000 Ohms
- Powering Interface
- Voltage 12 to 48 V
Audio Output
- Type Balanced XLR
- Gender Male
- Contacts 3-pin
Design
Dimensions / Weight
- Height 72 mm
- Diameter 39 mm
- Net Weight 74 g
Warranty period 2 years
