Opis i specyfikacja

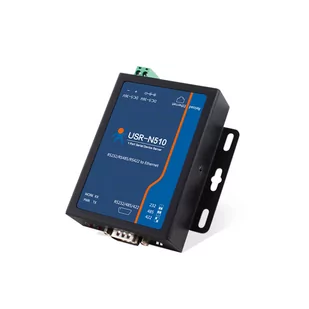

USR-N510 to przemysłowy media konwerter RS232/RS485/RS422 na LAN w metalowej obudowie. Urządzenie zapewnia przeźroczystą transmisję danych. Oparty na procesorze ARM, obsługuje protokół Modbus RTU oraz TCP IP.
- 1x 3in1 RS232/RS485/RS422 obsługa sygnałów RTS/CTS
- 1x Port Ethernet WAN/LAN
- Zasilanie 5-36V - gniazdo zasilacza (5,5/2,1) +przemysłowe gniazdo zasilania
- LED: Power, Work, TX, RX
- Obsługa DHCP, dynamiczny lub statyczny IP
- Konfiguracja poprzez WEBserver
- Modbus RTU / Modbus TCP IP
- Tryby pracy: TCP Server, TCP Client, UDP Client, UDP Server
- Sprzętowy Watchdog
|
USR-N510
|
|
|
Processor
|
Cortex-M4 |
|
Basic Frequency
|
120MHz |
|
Flash
|
512K byte |
|
Ethernet
|
|
|
Port Number
|
1 |
|
Interface Standard
|
8 pin RJ45 |
|
Rate
|
10/100 Mb/s, MDI/MDIX, auto switch between cross and direct connection |
|
Protection
|
2KV electromagnetism isolation, shell insulation blocking |
|
Network Protocol
|
IP,TCP,UDP,DHCP,DNS,HTTP,ARP,ICMP,Web socket,Httpd client |
|
Receive Buffer
|
Max 16k bytes buffer |
|
Serial
|
|
|
Port Number
|
1 |
|
Interface Standard
|
RS-232: DB9 pin type, RS-485: 2 wire (A+,B-), RS-422 (A,B,Y,Z) |
|
Data Bits
|
5,6,7,8 |
|
Stop Bit
|
1,2 |
|
Check Bit
|
None,Even,Odd,Space,Mark |
|
Baud Rate
|
600bps ~ 230.4Kbps |
|
Flow Control
|
RTS/CTS |
|
Buffer
|
Send and receive 2k bytes respectively |
|
Protection
|
RS-485: anti-static 2KV,lightning protection |
|
RS-485 Pull-up and Pull-Down Resistor
|
2.2 KΩ |
|
Software
|
|
|
Virtual Serial（USR-VCOM）
|
Windows 2000 or higher(32 bit/64 bit) |
|
Configuration
|
Built-in webpage, computer set-up software, serial command |
|
Basic Parameter
|
|
|
Size
|
88 x 81 x 24 mm |
|
Operating Temp.
|
-40 ~ 85°C (industry) |
|
Storage Temp.
|
-40 ~ 85°C, 5 ~ 95% RH (no condensation) |
|
Input Voltage
|
DC 5 ~ 36V |
|
Working Current
|
53mA @ 12V |
|
Power
|
<1W |
|
More
|
|
|
Certificate
|
CE,FCC,ROHS |
|
Warranty
|
2 years |
