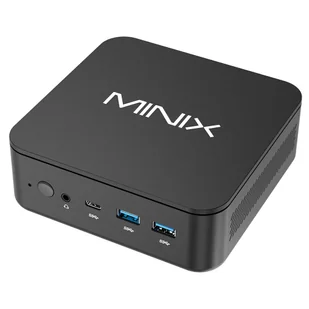

MINIX NGC NR660 Mini PC AMD Ryzen 5 6600H Cores Max 4 5GHz 16GB RAM 512GB SSD HDMI DP USB-C 4K@60Hz Triple Display WiFi 6E 1289630PLDX 1289630PLDX

Highlights

AMD Ryzen 5 6600H CPU & Radeon 660M Graphics
Featuring the AMD Ryzen 5 6600H processor (6 cores, 12 threads) and integrated Radeon 660M graphics, this mini PC offers smooth and responsive performance for office tasks, content creation, or enjoying casual gaming.

Fast DDR5 RAM Memory & 512GB NVMe SSD Storage
Equipped with 16GB DDR5-4800MHz RAM and a 512GB PCIe 3.0 NVMe SSD, this system delivers fast boot times and smooth performance even with demanding applications. It features dual DDR5 SO-DIMM slots supporting up to 64GB of memory and dual M.2 PCIe 4.0 x4 slots supporting up to 8TB of total storage—ideal for users handling large files or planning future upgrades.

Seamless Connectivity with Dual 4K Display Support
Experience next-gen connectivity with versatile I/O options including 1 USB4, 3 USB 3.2 Gen2, 1 USB 2.0, HDMI 2.0, DisplayPort, a 3.5mm audio combo jack, and 2 2.5G LAN ports—perfect for connecting external GPUs, high-speed drives, dual monitors, or audio gear. Both HDMI 2.0 and DisplayPort support dual 4K displays at 60Hz, delivering smooth multitasking, enhanced productivity, and immersive entertainment.

Fast Wi-Fi 6E & Dual 2.5G Ethernet for Reliable Networking
Stay connected with the latest Wi-Fi 6E standard, offering faster speeds, lower latency, and improved stability on 2.4GHz/5GHz/6GHz bands. Dual 2.5G Ethernet ports deliver stable, high-speed wired connections for seamless online work or streaming.

Compact Design & Ready to Use
This mini PC is stylish and can be easily placed anywhere, from the desktop to behind the monitor. It weighs only about 460 grams, is pre-installed with Windows 11 Professional (64-bit), and supports multiple languages. It has passed CE, FCC, RoHS, and PSE certifications, is safe and reliable, and can be used worldwide.

Specification

General	Brand: MINIX Name: NGC PRD Model: NR660 Color: Black Material: Full Plastic
Hardware	CPU: AMD Ryzen™ 5 6600H (12 Core, 12M Cache, up to 5.1 GHz) GPU: AMD Radeon™ 660M DDR: 16GB DDR5-4800MHz DDR Slot: 2×DDR5 SO-DIMM (Up to 64GB, Not included) SSD: 512GB M.2 2280 PCIe 3.0×4 SSD SSD Expansion: M.2 2280 PCIe 4.0×4 SSD Slot
WIFI & BT	Type: RZ616 MT7922A22M, BT5.2
I/O Prot	Front Button: 1 × Power Button with White LED Front Audio Jack: 1 × Audio Output Combo Jack Front USB Type A: 2 × USB-A 3.2 Gen2 Front USB Type C: 1 × USB-C 4.0 (Input 100W, Output 15W, 40Gbps) 4K@60Hz Front Reset: 1×Button Rear USB Type A: 1 × USB-A 2.0 Rear USB Type A: 1 × USB-A 3.2 Gen2 Rear HDMI: 2 × HDMI 2.1 TMDS 4K@60Hz Rear USB Type_C: 1×TBT4 (8K@60Hz) (DP, PD, Data) Rear DP: 1×DP1.4 4K@60Hz REAR RJ45: 2×RJ-45 2.5G Ethernet Rear DC Jack: 1×Input AC 100~240V, Output 19V 5A 95W Max, DC 2.5/5.5mm (Support RTC, EU US UK Adapter)
Software	Type: OS System: Windows 11 Pro Language Supported: Support Multi-language
Complete Machine Certification	Type: FCC CE UKCA ROHS WEEE PSE
WIFI Certification	Model: MT7922A22M Contains FCC ID: RAS-MT7922A22M Contains IC: 7542A-MT7922A22M CMIIT ID: 2021AJ12359(M) NCC ID: CCAI21Y10050T2 IMDA Standards: DB02941 ICC ID: R-C-MD6-MT7922A22M TELEC RF: 020-210086 TELEC TEL: D210041020
Environment	Operating Temperature: 0~50°C @5~80%RH Storage Temperature: -20~70°C Relative Humidity: 10~95% RH @ 40°C/104°F, Non-Condensing
Weight & Size	Product Dimension: 130×127×46.9mm Package Dimension: 182×172×112 mm Product Weight: 483g Package Weight: 1463g
