Overview:

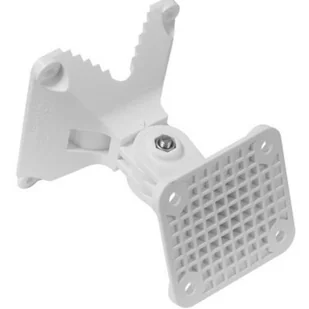

The quickMOUNT pro is a advanced wall or pole mount adapter for small point to point and sector antennas.
The quickMOUNT pro gives possibility to turn antenna within 140° both in horizontal and vertical plane. With the quickMOUNT pro it is possible to perfectly set antenna alignment using integrated graduated scale.
o It's simple and low cost
o Adjustable horizontally and vertically
o Wall or pole mountable
The quickMOUNT is very durable due to it's special plastic composite material - anvilNITE (TM).
Specifications:
|
Product code
|
QMP / QMP-LHG
|
|
Dimensions
|
95x88x112mm
|
|
Tube diameter
|
35 mm
|
|
Max tube diameterto which mount can be attached
|
65 mm
|
|
Maximum antenna weight
|
1.5 kg
|
|
Maximum wind load
|
100 N
|
|
Turn angle for MikroTik products
|
140°
|
|
Compatible devices
|
QMP-LHG: LHG 5
|
|
Material
|
anvilNITE(TM)
|
