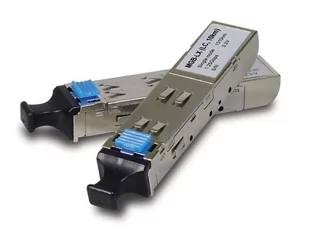

Planet Mgb-Lx (Ft3420)

Planet MGB-LX Moduł mGBIC, port SFP 1000BASE-LX (10 km) do zastosowania z przełącznikami Planet Główne cechy: • Zgodny z IEEE 802. 3ab / 802. 3z Gigabit Ethernet • Wejścia i wyjścia PECL • Zasilanie 3. 3V • Wskaźnik detekcji sygnału TTL • Hot Plugg • Zgodność z Class 1 EN 60825-1 • Instalacja Plug and Play MGB-SX PHY Type IEEE 802. 3z 1000BASE-SX Fiber Type Multi-Mode Connector LC Wavelength 850nm Maximum Distance 220m~550m Operating Temperature 0 ~ 60 degrees C MGB-SX2 PHY Type IEEE 802.

3z 1000BASE-SX Fiber Type Multi-Mode Connector LC Wavelength 1310nm Maximum Distance 2km Operating Temperature 0 ~ 60 degrees C MGB-LX PHY Type IEEE 802. 3z 1000BASE-LX Fiber Type Single Mode Connector LC Wavelength 1310nm Maximum Distance 10km Operating Temperature 0 ~ 60 degrees C MGB-L30 PHY Type IEEE 802. 3z 1000BASE-LX Fiber Type Single Mode Connector LC Wavelength 1310nm Maximum Distance 30km Operating Temperature 0 ~ 60 degrees C MGB-L50 PHY Type IEEE 802. 3z 1000BASE-EX Fiber Type Single Mode Connector LC Wavelength 1550nm Maximum Distance 50km Operating Temperature 0 ~ 60 degrees C MGB-L70 PHY Type IEEE 802. 3z 1000BASE-ZX Fiber Type Single Mode Connector LC Wavelength 1550nm Maximum Distance 70km Operating Temperature 0 ~ 60 degrees C MGB-L120 PHY Type IEEE 802.

3z 1000BASE-ZX Fiber Type Single Mode Connector LC Wavelength 1550nm Maximum Distance 120km Operating Temperature 0 ~ 60 degrees C MGB-LA10 PHY Type IEEE 802. 3ah 1000BASE-BX Fiber Type Single Mode Connector WDM/Bidi LC Wavelength TX: 1310nm, RX: 1550nm Maximum Distance 10km Operating Temperature 0 ~ 60 degrees C MGB-LB10 PHY Type IEEE 802. 3ah 1000BASE-BX Fiber Type Single Mode Connector WDM/Bidi LC Wavelength TX:

1550nm, RX: 1310nm Maximum Distance 10km Operating Temperature 0 ~ 60 degrees C MGB-LA20 PHY Type IEEE 802. 3ah 1000BASE-BX Fiber Type Single Mode Connector WDM/Bidi LC Wavelength TX: 1310nm, RX: 1550nm Maximum Distance 20km Operating Temperature 0 ~ 60 degrees C MGB-LB20 PHY Type IEEE 802.

3ah 1000BASE-BX Fiber Type Single Mode Connector WDM/Bidi LC Wavelength TX: 1550nm, RX: 1310nm Maximum Distance 20km Operating Temperature 0 ~ 60 degrees C MGB-LA40 PHY Type IEEE 802. 3ah 1000BASE-BX Fiber Type Single Mode Connector WDM/Bidi LC Wavelength TX: 1310nm, RX:

1550nm Maximum Distance 40km Operating Temperature 0 ~ 60 degrees C MGB-LB40 PHY Type IEEE 802. 3ah 1000BASE-BX Fiber Type Single Mode Connector WDM/Bidi LC Wavelength TX: 1550nm, RX: 1310nm Maximum Distance 40km Operating Temperature 0 ~ 60 degrees C MGB-LA60 PHY Type IEEE 802. 3ah 1000BASE-BX Fiber Type Single Mode Connector WDM/Bidi LC Wavelength TX:

1310nm, RX: 1550nm Maximum Distance 60km Operating Temperature 0 ~ 60 degrees C MGB-LB60 PHY Type IEEE 802. 3ah 1000BASE-BX Fiber Type Single Mode Connector WDM/Bidi LC Wavelength TX: 1550nm, RX: 1310nm Maximum Distance 60km Operating Temperature 0 ~ 60 degrees C MGB-GT PHY Type IEEE 802.

3ab 1000BASE-T Connector RJ45, Auto-negotiation, Auto-MDI/MDI-X Maximum Distance 100m Operating Temperature 0 . . .
