Teltonika TRB160 brama sieciowa 4G LTE (TRB160100000) to kompaktowa, przemysłowa brama sieciowa 4G (LTE) wyposażona w port Gigabit Ethernet, port USB Type-C, wydajny procesor i oprogramowanie RutOS do zaawansowanych rozwiązań sieciowych.

TRB160 to ultra-mała, lekka i energooszczędna brama IoT wyposażona w LTE kat. 6 o krytycznym znaczeniu, Gigabit Ethernet i wirtualny interfejs sieciowy przez port USB Type-C do jednoczesnego zasilania i dostarczania danych sieciowych. Ta brama IoT może osiągnąć prędkość komórkową do 300 Mb/s z agregacją nośnych w szerokim zakresie zastosowań i obsługuje szeroką gamę protokołów klasy przemysłowej do komunikacji M2M.

3x większa moc

TRB160 może być zasilany przez trzy różne złącza zasilania, w tym 4-pinowe, RJ45 i USB 3.0, z których wszystkie mogą działać jako awaryjne źródła zasilania. Zasadniczo jest to system zaprojektowany w celu utrzymania bezpiecznej pracy w przypadku awarii zasilania. USB 3.0 umożliwia ładowanie bramy, jednocześnie obsługując komunikację danych.

Gigabit Ethernet

Bramka IoT TRB160 jest wyposażona w port Gigabit Ethernet, zapewniający komunikację Gigabit Ethernet jako główne źródło Internetu. Zapewnia to stabilną i szybką łączność obsługującą transfer danych do 1 Gbps. Ta niezawodność i szybkość są szczególnie korzystne w przypadku działań wymagających dużej przepustowości, takich jak strumieniowanie filmów w wysokiej rozdzielczości lub przesyłanie dużych plików.

Bezpieczeństwo

Brama TRB160 kat. 6 jest wyposażona w szeroki zakres obsługi usług VPN, kontrolę dostępu i zaporę ogniową.

Protokoły

TRB160 obsługuje wiele protokołów M2M, takich jak OPC UA, Modbus, Data to Server, MQTT, DNP3 i DLMS. Dzięki temu ta brama IoT ułatwia płynną komunikację i wymianę danych między aplikacjami przemysłowymi, zapewniając wydajną i niezawodną integrację w różnych systemach.

Zawartość zestawu:

TRB160
zasilacz 9 W - Teltonika PR3PUEU3 zasilacz 9V 1A (035R-00143)
2x anteny LTE (magnetyczne mocowanie, SMA męskie, przewód 3m) - Teltonika PR1KS210 antena LTE 2dBi SMA, 3m (003R-00229)
kabel USB Type-C (0.8 m)
1x klucz hex
QSG (skrócona instrukcja obsługi)
Pudełko

Najważniejsze cechy:

LTE kat. 6 do 300 Mb/s z agregacją nośnych
1x port Gigabit Ethernet 10/100/1000 Mb/s
1x port USB Type-C do jednoczesnego zasilania i dostarczania danych sieciowych
2x złącza SMA dla anten LTE
Procesor Qualcomm, 1.2 GHz, ARM Cortex-A7 i 128MB pamięci RAM
Obsługa protokołów OPC UA, Modbus, Data to Server, MQTT, DNP3, DLMS i innych
Kompaktowy rozmiar, łatwa integracja
Szeroki zakres napięć zasilania 9-30V
System zdalnego zarządzania Teltonika - RMS
Oparty na systemie operacyjnym Linux pozwalającym na dużą personalizację oprogramowania

MOBILE

Mobile module: 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD: Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list: Operator black/white list (by country or separate operators)
Multiple PDN: Possibility to use different PDNs for multiple network access and services
Band management: Band lock, Used band status display
APN: Auto APN
Bridge: Direct connection (bridge) between mobile ISP and device on LAN
Passthrough: Router assigns its mobile WAN IP address to another device on LAN

ETHERNET

ETH: 1 x ETH port, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

NETWORK

Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall: Port forward, traffic rules, custom rules
Firewall status page: View all your Firewall statistics, rules, and rule counters
Ports management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology: Visual representation of your network, showing which devices are connected to which other devices
DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS: Supported >25 service providers, others can be configured manually
Network backup: Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing: Balance Internet traffic over multiple WAN connections
Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
SSHFS: Possibility to mount remote file system via SSH protocol

SECURITY

Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, flags, FIN scan attacks)
VLAN: Port and tag-based VLAN separation
Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec: IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE: GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN: Method of building scalable IPsec VPNs
SSTP: SSTP client instance support
ZeroTier: ZeroTier VPN client support
WireGuard: WireGuard VPN client and server support
Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

OPC UA

Supported modes: Client, Server (planned)
Supported connection types: TCP

MODBUS

Supported modes: Server, Client
Supported connection types: TCP
Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

Protocol: HTTP(S), MQTT, Azure MQTT
Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server

MQTT GATEWAY

Modbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Supported modes: Station, Outstation
Supported connection: TCP

DLMS

DLMS Support: DLMS - standard protocol for utility meter data exchange
Supported modes: Client
Supported connection types: TCP

API

Teltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

MONITORING & MANAGEMENT

WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA: Firmware update from server, automatic notification
SSH: SSH (v1, v2)
SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT: MQTT Broker, MQTT publisher
SNMP: SNMP (v1, v2, v3), SNMP Trap
JSON-RPC: Management API over HTTP/HTTPS
RMS: Teltonika Remote Management System (RMS)

IOT PLATFORMS

Cloud of Things: Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
Azure IoT Hub: Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICS

CPU: Qualcomm, 1.2 Ghz, ARM Cortex-A7
RAM: 128 MB
FLASH storage: 256 MB

FIRMWARE / CONFIGURATION

WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA: Update FW
RMS: Update FW/configuration for multiple devices at once
Keep settings: Update FW without losing current configuration
Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

Operating system: RutOS (OpenWrt based Linux OS)
Supported languages: Busybox shell, Lua, C, C++
Development tools: SDK package with build environment provided
GPL customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

INPUT / OUTPUT

Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events: Email, RMS, SMS
I/O juggler: Allows to set certain I/O conditions to initiate event

POWER

Connector: 1 x 4-pin industrial DC power socket, 1 x USB Type-C
Input voltage range 4-pin: 9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection >35 VDC 10us max; USB Type-C: 5 VDC
PoE (passive): Possibility to power up through ETH port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption: Idle: < 0.25 W, Max: < 3.3 W

PHYSICAL INTERFACES

Ethernet: 1 x RJ45 port, 10/100/1000 Mbps
I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs: 2 x connection type status LEDs, 3 x connection strength LEDs, 2 x ETH status LEDs, 1 x Power LED
SIM: 1 x Internal SIM slot (Mini SIM – 2FF), 1.8 V/3 V, eSIM (Optional)
Power: 1 x 4-pin power connector; 1 x USB Type-C
Antennas: 2 x SMA for Mobile
Reset: Reboot/User default reset/Factory reset button
Other: 1 x Virtual network interface via USB Type-C (For power and network data)

PHYSICAL SPECIFICATION

Casing material: Anodized aluminum housing and panels
Dimensions (W x H x D): 83 x 25 x 74.2 mm
Weight: 172 g
Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

OPERATING ENVIRONMENT

Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30

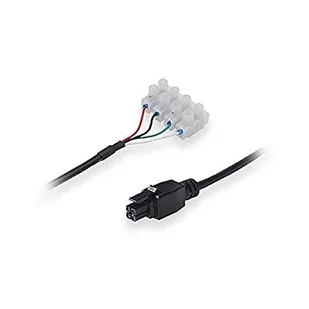

Teltonika Teltonika PR2FK20M 4 pin power cable with 4-way screw terminal PR2FK20M
