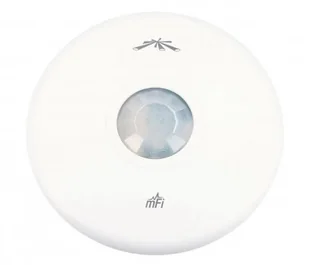

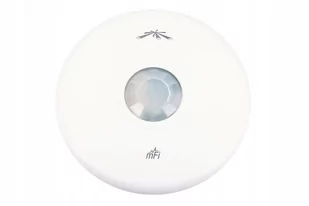

Ceiling Mount Motion Sensor (mFi-MSC) is a dual-technology motion sensor, using both passive infrared and microwave motion sensors to minimize the likelihood of false detections. It is wall-mountable and designed for security, occupancy detection, resource scheduling, and other smart building applications.
For use with mFi mPort hardware and mFi Controller software (included with the mFi mPort).
|
mFi-MSC
|
|
Dimensions
|
134.5 x 134.5 x 30.5 mm
|
|
Weight
|
136 g
|
|
RF Immunity
|
10V/m at 80 MHz to 2 GHz
|
|
Warm Time
|
2 Minutes
|
|
Angle of View
|
360°
|
|
Cone of Detection
|
110° Wide Angle
|
|
Ports
|
(1) mFi RJ45 Port
|
|
Mounting
|
Ceiling-Mount Bracket (Included)
|
|
Mounting Height
|
Up to 4.5 m (15 ft.)
|
|
Operating Temperature
|
0 to 50° C
|
|
Operating Humidity
|
5 to 95% Condensing
|
