Note

1. Because of the powerful laser power, it is forbidden to run the engraving machine without being supervised. Pause it if you're not around.

2. For detailed machine instructions, please refer to the manual for parameter settings.

3. When operating the laser engraving machine, please install the laser protective cover; if it is not installed, you need to wear goggles.

4. Do not touch the laser with your hands, otherwise, you may burn your hands.

5. Please avoid a strong impact on the machine.

6. It is forbidden for children under 14 years old to use this product, and children over 14 years old need adult supervision.

7. Do not apply the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.

Highlights

600x600mm Large Engraving Area
SCULPFUN S30 Ultra is designed with a real engraving area of 600x600mm, which makes many of your works not limited by the area, and you can produce most of the large-scale cutting works. In addition, the 600x600mm area is very sufficient, the service life is extremely long, and there is almost no need to upgrade the structure for future use.

Enhanced 33W Laser Power
S30 Ultra series laser uses a single enhanced 6W diode, which makes its actual laser power and cutting ability higher. 33W laser power can cut 20mm balsa wood and 15mm plywood separately by one pass and is suitable for those pursuing the ultimate speed.

Enhanced 42-bit Stepping Motor
It adopts an enhanced 42-bit stepping motor that provides sufficient power to make the machine move at high speed. The torque reaches 4.2 Kg·cm (ordinary machines are 3.1 Kg·cm). In future upgrades, even if the laser or the load becomes heavier, there is no need to replace the motor.

Built-in High-pressure Air-assisted Nozzle
S30 Ultra series is equipped with an advanced high-pressure air-assisted metal nozzle, which can generate high-pressure airflow under the air pump, greatly improving cutting efficiency, and the cutting speed is more than 5 times faster than that without air assist. The powerful airflow blows away the residue, making the cutting surface very clean.

Replaceable Protective Lens
S30 Ultra series laser engraver uses innovative replaceable lens, which greatly improves the service life of the laser, and is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to restore its cutting power.

Upgraded 32-bit Air-assisted Motherboard
The latest 32-bit motherboard supports automatic air-assisted control function, supports wireless Bluetooth connection to control the machine, and is not limited by the distance of the USB cable.

Industrial-grade Cutting Precision
S30 Ultra adopts an extremely strong 0.005mm high-precision linear slide rail X-axis to achieve industrial-grade engraving precision. When comparing small engraving details, the S30 Ultra does not have the wavy patterns that appear on ordinary engraving machines.

Professional Safety Design
It is equipped with an emergency stop switch and a safety child lock. In an emergency, tapping the emergency stop switch can stop the machine; after pulling out the key, the machine cannot be turned on, which can prevent children from turning it on by mistake.

One Series One Structure
S30 Ultra series models keep high compatibility in design, S30 Ultra 11W/22W/33W power adapter, structure, and laser cable are all the same. In future upgrades, you only need to replace the laser head without any other changes.

Tool Box, Laser Repair Box, Fixed-focus Column Holder
S30 Ultra provides professional tool storage boxes and maintenance tool boxes, including mechanical wrenches, tweezers, nozzle cleaners, etc., all of which are conveniently stored in boxes. In addition, a professional fixed-focus column storage box is provided on the machine, which is convenient for storing the fixed-focus column.

Solid and Durable Frame
Made of high-strength aluminum alloy, its frame can withstand a weight of up to 50kg without damage, which is very durable. The frame can be used for a long time and maintain high precision, only need to upgrade the latest laser when the machine needs to be upgraded.

Specification

General	Brand: SCULPFUN Type: Laser Engraver Model: S30 Ultra 33W Color: Blue
Specification	Laser Information: Diode Laser Output Power: 33W (this is light energy, not electrical energy) Laser Focus: 0.08x0.10mm Laser Wavelength 455±5nm Focusing Method: fixed focus column sliding device Laser Protective Cover: Equipped with a detachable laser protective cover to protect the eyes. You can adjust it up and down, or remove the eye shield. Machine Information: Engraving Accuracy: 0.005mm Engraving Area Size: standard version is 600x600mm Machine Electric Power: about 156W Air Pump: Type: main board controlled air pump Voltage: 24V Flow Rate: 30L/min Air Hose Inner Diameter: 7.5mm Motherboard: 32-bit air-assisted motherboard, supports Bluetooth wireless connection. Engravable/Cutting Material: Carving Materials: all kinds of wood (including walnut, cherry wood, and other high-density wood), MDF, stone, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramics, dark stone Cutting Materials: all kinds of wood (including walnut, cherry wood, and other high-density wood), MDF, acrylic board, cardboard, non-woven fabric, bamboo chips, leather, some plastic boards, PCB boards Operating Software: LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF, and other picture formats. Data Transmission Method: USB connection or Bluetooth wireless connection Power Input: 220V AC, 50Hz Power Output: 24V 7A
Weight & Size	Package Weight: 9.9kg Package Size(L x W x H): 86.8x25x24cm
Package Contents	1 x S30 Ultra 33W Laser Engraver 1 x Laser Shield 1 x Laser Repair Kit 1 x 24V Automatic Air Pump 2 x 4602303mm Wood Board 2 x 460*230mm Protective Aluminum Plate 2 x Limit Switch 1 x 24V 7A Power Adapter 1 x Power Cord 1 x USB Cable 1 x Rubber Air Hose 1 x Tool Box 1 x Laser Goggles Step 1-6 Installation Package 1 x X-axis Assembly 2 x X-profiles 2 x Y-profiles 1 x Control Box Assembly 3 x Support Feet 1 x Cable Clamp Bag 1 x Fixed Focus Column Mount 1 x Spare Screw Pack 1 x Non-slip Seat Pack 1 x User Manual

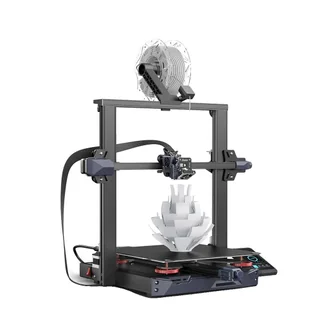

Drukarka 3D Ender-3 S1 PLUS, objętość robocza 300x300x300 mm, bezpośredni ekstruder o dwóch przełożeniach, Ender-3S1 PLUS
