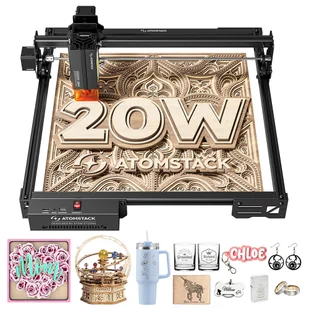

AtomStack A20 Pro V2 20W Laser Engraver 400mm/s High Speed 0 01mm Precision 0 08 x 0 1mm Spot 400*365mm

Highlights

Powerful & Precise

The ATOMSTACK A20 Pro V2 laser engraver features an advanced, independently developed motherboard for enhanced power, intelligence, and stability. Unique dot compression technology delivers 0.08 x 0.1mm dots, which ensures precise engraving. Laser Output Power Level: 20000mW, The Laser Class: 4.

Fast Speed, Strong Cutting

With a powerful 20000mW output laser power, the ATOMSTACK A20 Pro V2 excels in high-energy cutting and precise engraving Engraving speeds reach up to 400mm/s, significantly reducing processing times across materials like wood, acrylic, and metal

Easy Assembly & Safety

The ATOMSTACK A20 Pro V2 features an integrated linear guide motion structure for quick assembly and high precision, extending the machine's lifespan. Its aluminum alloy frame and modular design enhance durability and optimize laser movement. Built-in limit switches and a cross-line light ensure 0.01mm engraving accuracy. For safety, it includes a removable magnetic protective cover, safety glasses, and a tilt angle safety beep (>15°)

Easy to Use

Support for multifunctional human-computer interaction via Type-C or USB stick enhances versatility. It is compatible with the ATOMSTACK App/PC software, Lightburn, and LaserGRBL for flexible control

Specification

General	Brand: AtomStack Type: Laser Engraver Model: A20 Pro V2 Color: Black
Specification	Engraving size: 400*365mm Engraving material: Wood, bamboo, cardboard, plastic, leather, PCB, alumina, non-reverse Electroplated and lacquered metal, 304 mirror stainless steel, glass, ceramic, cotton, SLATE Cutting material: cardboard, non-woven fabric, wood, acrylic, some thin plastic board, sponge Machine power: 130W Laser electric power: 90W Laser output optical power: 20-24W Laser wavelength: 455±5nm Engraving accuracy: 0.01mm Focusing mode: fixed focus laser, no focusing Limit switch: 2 (X axis 1, Y axis 1) Laser protective cover: There is a protective cover on the laser to protect the user's eyes without the need to wear additional protective glasses. And keep pets from grabbing the laser spot Operating software: LaserGRBL, LightBurn, support Win XP/Win 7 / Win 8 / XP/Win 10 system Supported file formats: NC, BMP, JPG, PNG, DXF, Data transfer mode: USB connection Power supply: Power input: 100-240V AC, 50/60HZ Output: 24V 5A
Weight & Size	Product Weight: 5kg Package Weight: 6kg Package Size(L x W x H): 59x26x18cm
Package Contents	1 x Laser Engraver 1 x Installation Toolkit 1 x Power Cable 1 x Power Adapter 1 x USB Flash Drive 1 x Type C Cable 1 x X-axis Connecting Line 1 x Focus Shims 1 x Safety Glasses 1 x User Manual
