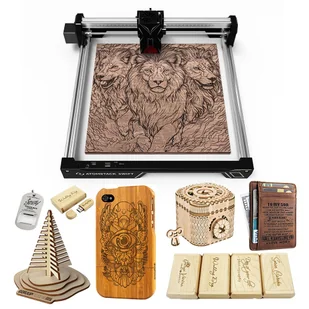

ATOMSTACK Swift 12W Laser Engraver 10000mm/min Speed 0 1mm Precision 0 08x0 04mm Laser Spot 300x300mm Working Area Accesso

Highlights

User-Friendly Design – Quick to Assemble and Start

The machine adopts a modular design, allowing users to complete installation and startup within 10 minutes, even without prior experience. With a 300×300mm moderate working area, it is suitable for use at home, in studios, garages, or market booths, making it an ideal choice for both beginners and professionals who need compact yet powerful engraving equipment.

Intelligent AtomStack Software System

Equipped with the latest AtomStack smart software, the system offers AI image generation that turns text into designs instantly. A built-in material and project library provides rich templates for quick creation, while preset parameter settings optimize engraving results for common materials. The machine can automatically recognize accessories such as the rotary or chuck module and switch to the corresponding machining mode for enhanced efficiency and ease of operation.

Multi-Material Processing Capability

The machine is available in 7W and 12W diode laser versions, both capable of processing a wide range of materials such as wood, bamboo, paper, leather, cardboard, cork, slate, MDF, coated metal, and dark acrylic. With an optional infrared laser module, it also supports high-precision engraving on metal, leather, and plastic, allowing users to handle diverse applications in creative, commercial, or industrial projects.

Multiple Optional Accessories

A variety of accessories are available to expand the engraving possibilities. The rotary roller enables engraving on cylindrical objects like tumblers, pens, and wine glasses, while the chuck rotary supports 360° engraving on rings, bracelets, and irregular circular items. Additional options such as camera, extension axis, infrared laser, honeycomb panel, and air assist further improve the user experience and meet different engraving demands.

Multi-Platform Connection and Control

This engraving machine supports multiple platforms, including Windows, macOS, Android, and iOS. It offers flexible connection options such as Wi-Fi, hotspot, and USB wired connection, ensuring smooth operation in any environment. Users can control the machine via the AtomStack APP or use professional software like LightBurn for advanced design and engraving management.

Specification

General	Brand: ATOMSTACK Type: Laser Engraver Model: Swift 12W Color: Black
Specification	Laser Type: Diode Laser (455 ± 5 nm) Laser Power: 12W Working Area: 300 × 300 mm Applicable Materials: Wood, bamboo, paper, leather, cardboard, cork, slate, felt, fabric, MDF, coated metal, dark opaque acrylic, and more. Maximum Engraving Speed: 10,000 mm/min Positioning Accuracy: 0.1 mm Focusing Method: Manual focus Safety Class: Class 4 Laser Safety Features: Tilt detection and flame detection for enhanced protection. Optional Accessories (Sold Separately): Honeycomb panel, air pump, infrared laser module, chuck rotary, roller rotary, camera, riser legs, and extension axis. Supported Software & Systems: AtomStack Studio (Android / iOS / Windows / macOS); compatible with LightBurn software (sold separately). Connection Methods: Wi-Fi, hotspot, or USB data cable.
Weight & Size	Product Weight: 2.2kg Package Weight: 2.8kg Package Size(L x W x H): 50x25x12cm
Package Contents	1 x Bottom Support Beam 1 x Upper Support Beam 1 x Left Y-Axis Assembly 1 x Right Y-Axis Assembly 1 x X-Axis Assembly 1 x Laser Module 1 x Integrated Power Adapter 1 x Optical Shaft 1 x Dual Type-C Cable 1 x Open-End Wrench 6 x M5×8 Hex Socket Head Screws 3 x Hex Wrench 1 x Timing Belt 1 x Desiccant 1 x User Manual 1 x Certificate of Conformity
