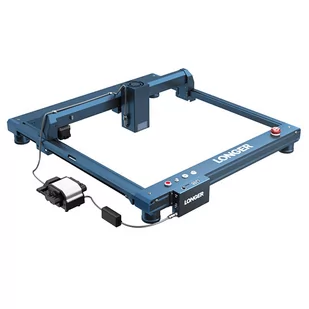

LONGER Laser B1 Laser Cutter, 40W Laser Power, Air Assist System, 0.10x0.15mm Laser Spot, 36000mm/min, 450x440mm

44-48W Ultra-high Power Laser

With the most advanced 8-core laser technology, the Laser B1 40W laser cutter has a strong 44-48W optical output power, one of the most strongest available diode-lasers today, and thus a much stronger cutting ability. Laser B1 can cut through 20mm paulownia wood, 10mm black acrylic, and even 0.1mm stainless steel in one-pass, 40mm basswood, and 50mm black acrylic in multi-passes.

Bigger Frame

It has a working area of 450 x 440mm, an increase of 23.75% compared to competitors. It meets the demands of most scenarios, especially ideal for A3 panels.

36000mm/min High Speed

Equipped with a new 32-bit motherboard, which allows engraving speed up to 36,000mm/min, four times faster than ordinary laser engraving machines. In addition, TMC2209 silent drivers are used to effectively reduce the noise of operation, providing a faster and more enjoyable experience.

Smart Air-Assist System

The Air-assist pump can be automatically turned on and off, and is directly controlled by the Lightburn, improving the precision and quality when cutting.

Multi-Color Engraving

The high-energy laser beam instantly oxidizes the metal surface, bringing 300 rich colors to fulfill your colorful creative needs.

Eight Major Safety Protections

Eight safety protection features are installed, including Move/ Flame/Offline/Motionless/Security Lock/Eye Protection/Emergency Stop Button/Zero Reset. Laser automatically shuts down when falling, flame, data disconnection, and laser head freezing over 15 seconds are detected. In addition, the laser head is automatically reset to zero to avoid burnout when fire. The panoramic filter glass can effectively filter 99.8% of the laser, safer to use.

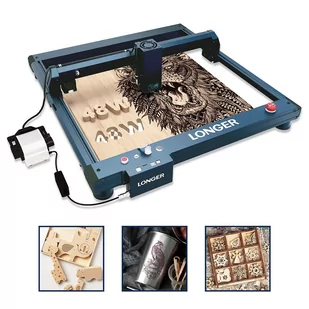

Wide Variety of Uses

The 40W laser can cut or engrave over 1000 different materials, such as wood, steel, leather, acrylic, cloth, and more.

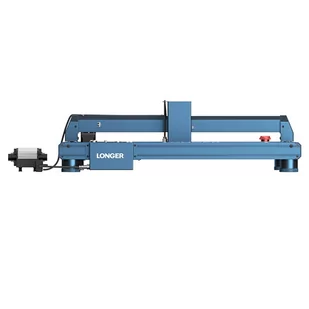

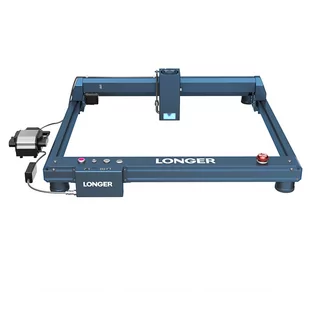

Sturdy Metal Frame

Laser B1 40W is made with an aluminum frame with improved mechanical designs and is very stable even under high-speed working mode. This helps to make better engraving and cutting arts.

Focus Positioning Bar

The laser module integrates a pull-down focus bar, which is easy to use, just pull down the focus bar, and move the bar towards the surface of the working panel.

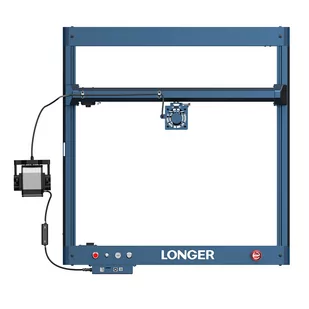

XY-Axis Limit Switches

Added X-axis and Y-axis limit switches can accurately locate the position of the laser module. At the same time, if the laser module moves in the negative direction of the X-axis or Y-axis, Laser B1 will trigger an alarm and stop the movement.

Laser Lens Protection

The laser module is equipped with a replaceable protective lens, which effectively prevents the smoke from polluting the laser lens, and greatly improves the service life of the laser module.

Multiple Data Transfer Options

Data can be transferred via different methods of Wi-Fi, USB cables, APP, and TF cards, which support offline operations. You can use it anywhere, without the limits of physical connection to a computer.

Great Software Support

Laser B1 is compatible with various mature carving software, such as LaserGRBL and LightBurn. It supports Windows 7 , macOS, Linux; engraving file formats Support JPG, PNG, BMP, G- code, GIF, SVG, NC, GC, etc.
