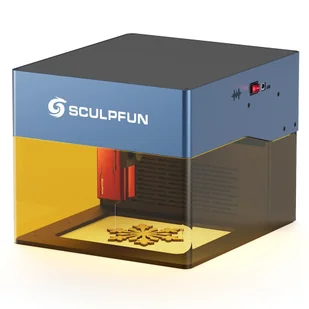

Sculpfun iCube Pro Max 10W Laser Engraver 0 08mm Laser Spot 10000mm/min Engraving Speed 120x120mm

Highlights

10W Powerful Cutting Laser

The iCube Pro Max uses a 10W diode laser with 0.08mm laser focus. It has stronger laser performance, cutting penetration, and higher working efficiency, which can engrave or cut more difficult materials and complete the laser tasks faster.

High-Speed Engraving

iCube ProMax 10W laser engraver with the 32-bit motherboard greatly improves the engraving efficiency, which can reach 10000mm/min engraving speed.

With Smoke Filter

Sculpfun iCube laser engraver is equipped with a smoke filtration system that effectively filters the smoke generated during the engraving and cutting process without the enclosure, which makes it more convenient to engrave and cut in an office or home. Bringing more usage scenarios and enjoying the fun of engraving without limitation.

Multiple Connection Methods

The laser engraving machine supports mobile phone and computer system connection. You can connect to the iCube machine via your mobile phone with the Sculpfun APP, or you can connect to the computer with the BT function or Type-C interface data cable. It is compatible with Win7/Win8/Win10/Win11/MAC/IOS/Android/Linux system.

Temperature Alarm Function

Built with the temperature alarm device, the machine will stop running and emit a buzzer alarm when the temperature inside the engraving machine is over 45 Celsius to ensure the safety of users and equipment. And when the temperature descends, restart the machine to start the work.

Enclosed Eye Protection Shield

iCube portable laser engraver is designed with a detachable, fully enclosed Acrylic material eye protection shield, which can effectively protect your eyes from different angles. It enables you to observe the laser engraving process without wearing the goggles.

Engraving Objects without Size Limit

With the unique semi-open structure design, there is no limitation by the size of the engraving objects. You can place them inside the machine or put the machine on the surface of some large objects to perform the tasks. The patterns engraving area is 120x120mm which can meet your various engraving demands.

Replaceable Laser Lens

Sculpfun iCube series adopts an innovative laser head that supports the replacement of the laser lens, which greatly improves the service life of the laser by more than 10 times longer than that of other general lasers. When the lens is damaged or dirtied after long-term use, it can be replaced to restore the cutting power.

Some Important Tips:
1: About the Engraving Materials:
Note that any specular reflective objects can not be engraved. Otherwise, the laser reflection will damage the laser head.
2: About the smoke filter:
A free set of cotton filters is attached with the purchase; it needs to be replaced periodically to ensure the filter effect.
3: About the laser lens:
A free lens is attached to the package with purchase, which also can be ordered separately.

Specification

General	Brand: SCULPFUN Type: Laser Engraver Model: iCube Pro Max 10W Color: Blue
Specification	Fan Speed: 5000RPM Temperature Sensor: 45℃ Trigger Bluetooth: 4.2 Wi-Fi: 2.4Ghz Wavelength: 455nm Engraving Area: 120*120mm Laser Head Power: 10W Image Format: JPEG/BMP/TIF/GIF, etc. Laser Spot: 0.08mm Working Voltage: 220V AC, 50Hz Working Current: 12V 7A Optimal Focusing Distance: 40mm Support System: Win7/Win8/Win10/Win11/MAC/IOS/Android/Linux Operation Application Software: Computer: LightBurn/LaserGRBL Mobile Phone: Sculpfun APP
Weight & Size	Product Weight: 3.4kg Package Weight: 4.95kg Product Size(L x W x H): 26.2*30*22.6cm Package Size(L x W x H): 31.8*28.2*36cm
Package Contents	1 x Laser Engraver 1 x U-Shaped Shield 1 x Metal Plate 1 x Laser Head 1 x Power Adapter 1 x Power Cable 1 x Type-C Data Cable 1 x Cotton Filter Set 1 x Lens Repair Kit 1 x Goggle 1 x Basswood Board 1 x MDF 1 x Installation Instruction
