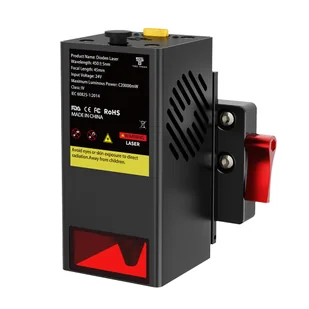

Highlights
Powerful 20W Laser Module
The module delivers a stable 20W laser output, providing high-performance cutting and engraving capabilities.
Compact & Lightweight Design
Measuring only 50×50×102mm, the module is easy to integrate, reduces motion inertia, and allows flexible installation in various machines.
High Precision
Advanced diodes ensure a clear 130×145 μm laser spot, enabling detailed and precise engraving or cutting.
Integrated Air Nozzle
The module comes with a built-in air nozzle for convenient installation—just connect one air pump and hose for immediate use.
Enhanced Automation & Efficiency
The innovative slider system uses Z-axis motors to achieve precise control, improving automation, accuracy, and workflow efficiency.
Specification
| General |
Brand: TWO TREES
Type: Adaptor Kit for TTC450 Series
Model: TC20W
Color: Black
|
| Specification |
Body material: CNC parts electronic components
Engraving precision: 0.1mm
Power supply: Adapter
Adapter parameters: 100-240V ~ 50/60HZ 2.5A 24V⎓5A
Input voltage: 24V
Electric power: 120W
Optical power: 20000mW
Focal length: 8mm
Spot shape: Rectangular
Wavelength: 450±5nm
Heat dissipation mode: Air-Cooled
Body Material: CNC parts electronic components
Engraving material: (Wood, Plastic, Paper, Leather, Bamboo, Sponge Paper, Stainless Steel, Snowboard, Acrylic) |
| Weight & Size |
Product Weight: 1.5kg
Package Weight: 1.334kg
Product Size(L x W x H): 50x50x102mm
Package Size(L x W x H): 251x193x86.5mm |
| Package Contents |
1 x 20W Laser
4 x M5*15 Screws
1 x 7-Shaped Handle Screw
1 x Laser Protective Glasses
1 x 2mm Allen Wrench
4 x M3*6 Screws
1 x TTC450 Pro Laser Connection Cable
1 x Laser Backplate B
1 x TTC450 Laser Connection Cable
1 x 3mm Allen Wrench
1 x Fixed Focus Block
1 x 24V 5A Adapter
1 x Laser Backplate A
1 x Power Cord
|
