SPECYFIKACJA

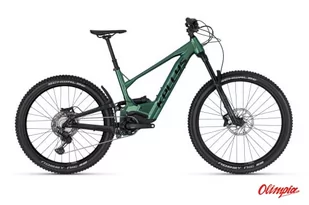

Rama: KELLYS THEOS R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / Think Link® suspension system, 130 mm rear travel, integrated removable battery, 1. 8“ tapered HT, post mount 203 mm, mullet 29 / 27. 5+ wheelset, 12x148 mm Boost thru axle
Rozmiary ram: S / M / L
Silnik:
PANASONIC GX Ultimate, 95 Nm, 36 V
Przełącznik: PANASONIC
Wyświetlacz licznika: PANASONIC color LCD side display
Akumulator: KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by Kellys-BMZ
Widelec: ROCK SHOX 35 Silver TK (29) Boost, 150 mm, Solo Air / TurnKey / Maxle Stealth 15 mm thru axle
Amortyzator tył:
ROCK SHOX Deluxe Select R, DebonAir+ (210x55 mm)
Stery: ACROS 1. 8 tapered semi-integrated
Korby: MIRANDA Delta (34T) - length 170 mm
Manetki: SHIMANO Cues SL-U6000-10 Rapidfire Plus
Przerzutka tył:
SHIMANO Cues U6000 (direct mount)
Ilość biegów: 10
Kaseta: SHIMANO Linkglide CS-LG400-10 (11-48T)
Łańcuch: SHIMANO Linkglide CS-LG500 (122 links)
Hamulce: SHIMANO MT420 Hydraulic Disc
Tarcze hamulcowe: SHIMANO RT30 203 mm front / EM300 203 mm rear
Dźwignie hamulcowe:
SHIMANO Deore BL-M4100
Piasty: SHIMANO MT400-B Disc Center Lock (32 holes)
Oś: thru axle ROCK SHOX Maxle Stealth 15x110 mm front / Mr. Control 12x177 mm rear
Obręcze: KLS Valor 3 Disc 622x30 front / 584x30 rear (32 holes)
Szprychy:
stainless steel black
Opony: SCHWALBE Nobby Nic Performance 60-622 (29x2.35) Tubeless Easy, ADDIX, folding, front / SCHWALBE Nobby Nic Performance 65-584 (27.5x2.60) Tubeless Easy, ADDIX, folding, rear
Wspornik kierownicy: KLS Alm/En 50 - diam 28. 6 mm / bar bore 31. 8 mm / length 60 mm
Kierownica:
KLS Alm/En 70 RiseBar - diam 31. 8 mm / rise 25 mm / width 780 mm
Chwyty: KLS Poison OneLockon
Sztyca: LIMOTEC A1 Remote Telescopic - diam 30. 9 mm / length 445 mm, travel 150 mm
Siodło:
fi´zik Taiga S-alloy rails
Pedały: plastic
