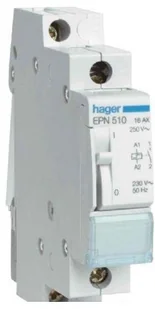

Latching relay 1NO 8VFor pulse control of light installations. Rated current In: 16A AC1Rated Voltage Un: 230 / 400VACCoil Voltage Un: 8VACPulse Length:
min. 50ms and max 1 hourTire consumption v. AC operation: 20VATouch protection: IP20Connection: 0. 75 - 10mm2Dimensions:
1 module of 17. 5mmStandard: EN 60669-1 / 2-2Note: Operating pressure must be selected in h. t. Attraction consumption, as well as lead length and dimension must be observed.
See technical data in catalog.
