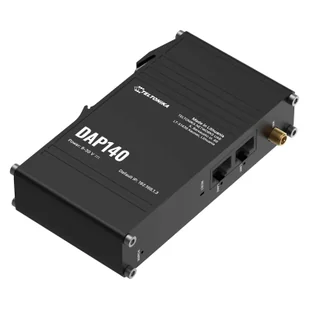

Teltonika DAP140 DAP140000000

284,07 zł
IDŹ DO SKLEPU
Teltonika DAP140 to przemysłowy bezprzewodowy punkt dostępowy z pasywnym wejściem PoE, zaprojektowany w celu zwiększenia zasięgu Wi-Fi i wydajności w środowiskach przemysłowych. Access point DAP140 wyposażony jest w Wi-Fi 4 z Wi-F...
Oferty Opis i specyfikacja

Oferty

(1)

Pozostałe oferty od najtańszej

Teltonika DAP140
284,07 zł
IDŹ DO SKLEPU

Opis i specyfikacja

Teltonika DAP140 to przemysłowy bezprzewodowy punkt dostępowy z pasywnym wejściem PoE, zaprojektowany w celu zwiększenia zasięgu Wi-Fi i wydajności w środowiskach przemysłowych.

Access point DAP140 wyposażony jest w Wi-Fi 4 z Wi-Fi mesh i Fast Roaming, a także dwa porty RJ45 i obsługę do 50 jednoczesnych połączeń. Ten bezprzewodowy punkt dostępowy jest integralną częścią utrzymania niezawodnej łączności. Zintegrowany uchwyt na szynę DIN, 3-pinowe złącze zasilania i aluminiowa obudowa klasy przemysłowej sprawiają, że DAP140 jest idealnym punktem dostępowym do zastosowań przemysłowych. Ta elegancka konstrukcja pozwala wytrzymać najtrudniejsze warunki przemysłowe, w tym temperatury od -40 °C do 75 °C.

DAP140 posiada szereg funkcji bezpieczeństwa, w tym wiele metod uwierzytelniania i kontroli dostępu, zaporę ogniową i zapobieganie atakom oraz obsługiwanymi protokołami VPN, takimi jak OpenVPN, ZeroTier, BacNET i WireGuard.

Urządzenia Teltonika DAP to seria punktów dostępowych zaprojektowanych w celu wzmocnienia zasięgu Wi-Fi w małych przedsiębiorstwach i przestrzeniach komercyjnych. Te punkty dostępowe PoE-in mogą być zasilane przez aktywne urządzenia PoE za pośrednictwem portu RJ45 i zostały zaprojektowane z myślą o prostocie i łatwości instalacji.

Zawartość opakowania:
Najważniejsze cechy:
  • Wi-Fi 4 z Wi-Fi mesh i szybkim roamingiem
  • 2x porty Fast Ethernet 10/100 Mb/s RJ45
  • 3-pinowe złącze zasilania dostosowane do użytku przemysłowego
  • Zintegrowany uchwyt na szynę DIN
  • Łatwy montaż dla wdrożenia plug-and-play
Wireless
  • Wireless mode: IEEE 802.11b/g/n (Wi-Fi 4), Access Point (AP), Client (STA), Mesh (802.11s), Multi AP
  • WiFi security: WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-EAP, OWE, WPA2-EAP, WPA3-EAP
  • SSID/ESSID: SSID stealth mode and access control based on MAC address
  • Wi-Fi users: Up to 50 simultaneous connections
  • Wireless mesh/roaming: Fast roaming (802.11r), Radio Resource Measurement (802.11k), BSS Transition Management (802.11v), Client isolation, Hide SSID, WMM
  • Wireless MAC filter: Allowlist, blocklist
  • Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information
  • TravelMate: Forward Wi-Fi hotspot landing page to a subsequent connected device
Ethernet
  • LAN: 2 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Network
  • Routing: Static routing, Dynamic routing(RIP, OSPF, EIGRP, BGP, NHRP), Policy based routing, Routing rules
  • Network protocols: TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake On Lan (WOL)
  • VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
  • Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
  • Firewall: Port forward, traffic rules, custom rules
  • Firewall status page: View all your Firewall statistics, rules, and rule counters
  • Ports management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
  • Network topology: Visual representation of your network, showing which devices are connected to which other devices
  • DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
  • QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
  • DDNS: Supported >25 service providers, others can be configured manually
  • DNS over HTTPS: DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
  • Network backup: Wi-Fi WAN, VRRP, Wired options, each of which can be used as an automatic Failover
  • Load balancing: Balance Internet traffic over multiple WAN connections
  • Hotspot 2.0: Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks
  • SSHFS: Possibility to mount remote file system via SSH protocol
  • VRF support: Initial virtual routing and forwarding (VRF) support
  • Traffic Management: Real-time monitoring, wireless signal charts, traffic usage history
Security
  • Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
  • Firewall: Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
  • Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, flags, FIN scan attacks)
  • VLAN: Port and tag-based VLAN separation
  • WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
  • Access control: Flexible access control of SSH, Web interface, CLI and Telnet
  • SSL certificate generation: Let's Encrypt and SCEP certificate generation methods
  • 802.1x: Port-based network access control server
VPN
  • OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods
  • OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, ES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
  • IPsec: XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
  • GRE: GRE tunnel, GRE tunnel over IPsec support
  • PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
  • Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
  • DMVPN: Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
  • SSTP: SSTP client instance support
  • ZeroTier: ZeroTier VPN client support
  • WireGuard: WireGuard VPN client and server support
  • Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
  • Tailscale: Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol
OPC UA
  • Supported modes: Client, Server
  • Supported connection types: TCP
MODBUS
  • Supported modes: Server, Client
  • Supported connection types: TCP
  • Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
  • Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER
  • Protocol: HTTP(S), MQTT, Azure MQTT
  • Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
MQTT Gateway
  • Modbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
  • Supported modes: Station, Outstation
  • Supported connection: TCP
DLMS
  • DLMS Support: DLMS - standard protocol for utility meter data exchange
  • Supported modes: Client
  • Supported connection types: TCP
  • COSEM: Allows to scan meter COSEM objects for automatic detection and configuration
  • API: Teltonika Networks Web API (beta) support
  • Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
Monitoring & Management
  • WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
  • FOTA: Firmware update from server, automatic notification
  • SSH: SSH (v1, v2)
  • Email: Receive email message status alerts of various services
  • TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
  • MQTT: MQTT Broker, MQTT publisher
  • SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection
  • JSON-RPC: Management API over HTTP/HTTPS
  • MODBUS: MODBUS TCP status/control
  • RMS: Teltonika Remote Management System (RMS)
IoT Platforms
  • ThingWorx: Utility to interact with Thingworx cloud platform
  • Cumulocity - Cloud of Things: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP. Has reboot and firmware upgrade actions
  • Azure IoT Hub: Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
  • AWS IoT Core: Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality
System Characteristics
  • CPU: Mediatek, 580 MHz, MIPS 24KEc
  • RAM: 128 MB, DDR2
  • FLASH storage: 16 MB serial NOR flash
Firmware / Configuration
  • WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
  • FOTA: Update FW
  • RMS: Update FW/configuration for multiple devices at once
  • Keep settings: Update FW without losing current configuration
  • Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
FIRMWARE CUSTOMISATION
  • Operating system: RutOS (OpenWrt based Linux OS)
  • Supported languages: Busybox shell (ash), Lua 5.1, C, C++
  • Development tools: SDK package with build environment provided
  • GPL customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
  • Package Manager: The Package Manager is a service used to install additional software on the device
Power
  • Connector: 3-pos plugable terminal block
  • Input voltage range: 9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max
  • PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN2 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
  • Power consumption: Idle: < 1 W / Max: < 2 W
Physical Interfaces
  • Ethernet: 2 x RJ45 ports, 10/100 Mbps
  • Status LEDs: 2 x LAN type LED, 1 x Power LED
  • Power: 1 x 3-pin power connector
  • Antennas: 1 x RP-SMA for Wi-Fi
  • Reset: Reboot/User default reset/Factory reset button
  • Other: 1 x Grounding screw
Physical Specification
  • Casing material: Aluminium housing
  • Dimensions (W x H x D): 113,10 x 25 x 68,6 mm
  • Weight: 142.3 g
  • Mounting options: Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)
Operating Environment
  • Operating temperature: -40 °C to 75 °C
  • Operating humidity: 10% to 90% non-condensing
  • Ingress Protection Rating: IP30
Regulatory & Type Approvals
  • Regulatory: CE, UKCA, CB
