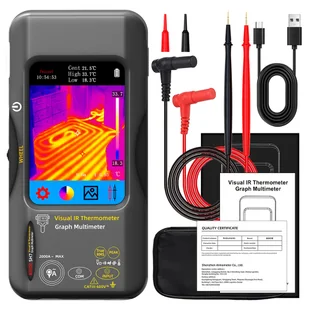

BSIDE SH7 Infrared Thermal Imager Multimeter 240x240Pixel 15 Color Modes 3 98' TFT Touch Screen USB Rechargeable Battery O

639,00 zł
IDŹ DO SKLEPU
Highlights Advanced Thermal Imaging Equipped with a VOx microbolometer sensor, the SH7 provides high-resolution thermal imaging with 240x240 pixels, ensuring accurate temperature measurement and detection of heat variances. User-...
Oferty Opis i specyfikacja

Oferty

(1)

Pozostałe oferty od najtańszej

BSIDE SH7 Infrared Thermal Imager Multimeter 240x240Pixel 15 Color Modes 3 98' TFT Touch Screen USB Rechargeable Battery O
639,00 zł
IDŹ DO SKLEPU

Opis i specyfikacja

Highlights

Advanced Thermal Imaging

Equipped with a VOx microbolometer sensor, the SH7 provides high-resolution thermal imaging with 240x240 pixels, ensuring accurate temperature measurement and detection of heat variances.

User-Friendly Interface

The multimeter features a 3.98" TFT capacitive touch screen with a 320x480 resolution, providing an intuitive and responsive interface for easy operation and analysis.

Compact and Portable

Built to withstand tough conditions, it features an anti-drop silicone case and an IP65 rating. Its compact design, weighing just 274 grams, makes it convenient for field use.

Multiple Measurement Modes

The SH7 provides a wide temperature range (-20°C to 550°C) and adjustable emissivity (0.01 to 1.00), allowing for versatile applications across various environments and materials.

Comprehensive Color Palettes

Offering 15 false color modes, including White Heat, Rainbow, and Iron Red, the SH7 allows users to customize the display for their specific needs, enhancing visibility and analysis.

Specification
General Brand: BSIDE
Type: Thermal Imager Multimeter
Model: SH7
Color: Gray
Specification

Thermal Imaging Parameters:
Sensor Type: Vanadium oxide (VOx) microbolometer
Response Band: 8 ~ 14 microns
Thermal Image Resolution: 240x240 pixels
Noise Equivalent Temperature Difference: ≤60 mK(@25°C,F#1.0)
Angle of View (FOV): 50.0° (H) x 50° (V) / 72.1° (D)
Spatial Resolution: 8.89 mrad
Frame Frequency: 25Hz
Imaging Lens Focal Length: 1.35 mm
Temperature Measurement Focal Length: Adjustable from 0.3m to 3m
Temperature Range: -20°C~550°C
Temperature Measurement Accuracy: ±2°C or readout±2% (take a larger reading)
Temperature Unit: Degrees Celsius, degrees Fahrenheit, Kelvin
Temperature Resolution: 0.1°C
Emissivity: Adjustable from 0.01 to 1.00
Thermometric Display: Central point temperature measurement, high and low-temperature tracking
Display Screen: 3.98" TFT capacitive touch screen
Display Resolution: 320x480
Temperature Alarm: Screen font color alarm
Image Storage: Built-in memory card
Number of Image Files: 30,000
Image Format: BMP picture
Focusing Mode: Non-focusing
Hardware Interface: Type-C USB
Battery Type: Rechargeable lithium battery (3.7V/2500mAh)
Battery Operating Time: >7h@25°C
Charging Time: <3h@25°C
Fall: 1.5 m
Operating Temperature: -10°C~50°C
Storage Temperature: -40°C~70°C
Working Humidity: ≤85%RH (non-condensing)
Color Palettes: 15 modes (e.g., White Heat, Black Heat, Rainbow, etc.)

Multimeter Parameters:
Display Screen: 3.98 inch capacitive touch screen
Resolution: 320x240 pixels
Data Statistics: Yes
Backlight: Adjustable brightness
Low Battery Warning: Yes
Automatic Shutdown: Yes
Battery Type: (2500mAh) Lithium battery
Working Environment:
Temperature: 0~40°C
Humidity: <75%
Storage Environment:
Temperature: -20~60°C
Humidity: 80%
Weight & Size Product Weight: 274g
Package Weight: 48g
Product Size(L x W x H): 169*81*26.8mm
Package Size(L x W x H): 220*125*47mm
Package Contents 1 x Thermal Imager Multimeter
2 x Test Leads
1 x USB Cable
1 x Storage Bag
1 x User Manual
1 x Packaging Box
