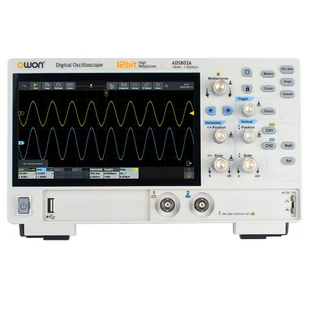

OWON ADS802A Digital Oscilloscope 7-inch Touch Screen 12Bit High Precision Dual Channel 70MHz Bandwidth 1 25 GSa/s Sample

Highlights

12-bit High-Resolution ADC

This High-Resolution Oscilloscope delivers 4096 vertical levels (16x clearer than 8-bit scopes), capturing µV-level signal details for precise power ripple and noise analysis.

Ultra-Fast 1.25 GSa/s Sampling

The 1.25 GSa/s Oscilloscope ensures accurate real-time signal capture with a 50M record length, ideal for debugging high-speed circuits.

700,000 wfms/s Waveform Capture

Detect transient anomalies 10x faster than standard scopes with this 700,000 wfms/s Waveform Capture oscilloscope.

7-inch Multi-Touch Display

Operate this 7-inch Touchscreen Oscilloscope like a smartphone, with customizable shortcuts and a 1024×600 resolution for intuitive analysis.

Advanced Protocol Decoding

Built-in CAN/LIN Bus Decoding Oscilloscope supports UART, I2C, SPI, CAN, and LIN protocols for embedded system debugging.

Five-in-One Multifunction Tool

Combines a Digital Oscilloscope, Protocol Analyzer, FFT Spectrum Analyzer (1M-point), 4-Digit Voltmeter, and 6-Digit Frequency Counter in one device.

Expandable & Remote-Controlled

Connect peripherals (mouse/keyboard) or use the embedded web server to operate this Multifunction Protocol Analyzer remotely via Wi-Fi.

Specification

General	Brand: OWON Type: Digital Oscilloscope Model: ADS802A
Specification	Bandwidth (-3 dB): 70MHz Channel: 2 Max. sample rate: Max. 1.25GSa/s Acquire mode: Sample, Peak, High Res, Average, Segmentation DC Gain Accuracy: 3% (≤1mV); 2% (2mA); 1.5% (≥5mV) Max. waveform capture rate: Max. 700,000wfms/s Max memory depth: 50M Vertical Sensitivity Range: 500μV/div - 10 V/div Vertical resolution: 12 bits Sampling rate range: 1ns/div - 1000s/div, step by 1-2-5 Relay time accuracy: ±25ppm (typical) Input Impedance: 1.0MΩ±20%, parallel with 20 pF±5 pF Probe Attenuation Coefficient: 1.00x - 1.00Mx, step by 1-2-5, support custom Trigger type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic Bus decoding: RS232/UART, I2C, SPI, CAN, LIN Auto measurement: Period, Frequency, Width, -Width, Rise Time, Fall Time, Scr Duty, Duty, -Duty, Vavg, Vpp, VRMS, Overshoot, Vmax, Vmin, Vtop, CycRms, Vbase, Vamp, Preshoot, Std Dev, Pulse Cnt, -Pulse Cnt, Rise Cnt, Fall Cnt, Area, Cyc Area, Delay(A↑-B↑), Delay(A↑-B↓), Delay(A↓-B↑), Delay(A↓-B↓), Phase(A↑-B↑), Phase(A↑-B↓), Phase(A↓-B↑), Phase(A↓-B↓), Phase(A↓-B↓), FRR(A↑-B↑), FRF(A↑-B↓), FFR(A↓-B↑), FFF(A↓-B↓), LRR(A↑-B↑), LRF(A↑-B↓), LFR(A↓-B↑), LFF(A↓-B↓) Waveform Math: , -, *, /, &, |, ^, !, Intg, Diff, Sqrt, Function operation (Lg / Ln / Exp / Abs / Sine / Cosine / Tan), FFT, FFT rms, User Defined, digital filter (low pass, high pass, band pass, band reject) Frequency counter: 6-digit frequency counter. 7 - Maximum frequency: maximum analog bandwidth of oscilloscope Voltmeter: Support DC, AC DCrms, ACrms. Resolution: 4 digits (ACV/DCV) Communication Interface: HDMI, USB device, USB Host, Trig Out(P/F), LAN Display: 7 inch (1024×600), capacitive multi-touch screen Power supply interface: Type-C
Weight & Size	Product Weight: 1.5kg Package Weight: 2.58kg Product Size(L x W x H): 260x160x78mm Package Size(L x W x H): 300x220x200mm
Package Contents	1 x Digital Oscilloscope 2 x Probe 1 x Power Cord 1 x Power Adapter 1 x USB Cable 1 x User Manual
