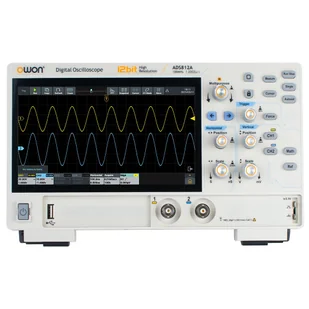

| Specification |
Bandwidth (-3 dB): 100MHz
Channel: 2
Max. sample rate: Max. 1.25GSa/s
Acquire mode: Sample, Peak, High Res, Average, Segmentation
DC Gain Accuracy: 3% (≤1mV); 2% (2mA); 1.5% (≥5mV)
Max. waveform capture rate: Max. 700,000wfms/s
Max memory depth: 50M
Vertical Sensitivity Range: 500μV/div - 10 V/div
Vertical resolution: 12 bits
Sampling rate range: 1ns/div - 1000s/div, step by 1-2-5
Relay time accuracy: ±25ppm (typical)
Input Impedance: 1.0MΩ±20%, parallel with 20 pF±5 pF
Probe Attenuation Coefficient: 1.00x - 1.00Mx, step by 1-2-5, support custom
Trigger type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic
Bus decoding: RS232/UART, I2C, SPI, CAN, LIN
Auto measurement: Period, Frequency, Width, -Width, Rise Time, Fall Time, Scr Duty, Duty, -Duty, Vavg, Vpp, VRMS, Overshoot, Vmax, Vmin, Vtop, CycRms, Vbase, Vamp, Preshoot, Std Dev, Pulse Cnt, -Pulse Cnt, Rise Cnt, Fall Cnt, Area, Cyc Area, Delay(A↑-B↑), Delay(A↑-B↓), Delay(A↓-B↑), Delay(A↓-B↓), Phase(A↑-B↑), Phase(A↑-B↓), Phase(A↓-B↑), Phase(A↓-B↓), Phase(A↓-B↓), FRR(A↑-B↑), FRF(A↑-B↓), FFR(A↓-B↑), FFF(A↓-B↓), LRR(A↑-B↑), LRF(A↑-B↓), LFR(A↓-B↑), LFF(A↓-B↓)
Waveform Math: , -, *, /, &, |, ^, !, Intg, Diff, Sqrt, Function operation (Lg / Ln / Exp / Abs / Sine / Cosine / Tan), FFT, FFT rms, User Defined, digital filter (low pass, high pass, band pass, band reject)
Frequency counter: 6-digit frequency counter. 7 - Maximum frequency: maximum analog bandwidth of oscilloscope
Voltmeter: Support DC, AC DCrms, ACrms. Resolution: 4 digits (ACV/DCV)
Communication Interface: HDMI, USB device, USB Host, Trig Out(P/F), LAN
Display: 7 inch (1024×600), capacitive multi-touch screen
Power supply interface: Type-C |
