Highlights
1. AC/DC clamp meter Recorder Function Oscilloscope function 3 in 1.
2. 20,000 count true RMS auto-ranging clamp meter.
3. Oscilloscope：Capable of measuring both current and voltage waveforms simultaneously.
4. Recorder Function: View, compare, analyze, and store measurement data via i-meter (app).
5. Inrush Current Measurement Function.
6. support for Android/IOS dual systems.
7. Full touch-key operation enables quick switching with one hand
8. 2.8-inch IPS LCD display with wide viewing range makes the values and waveforms clearer.
9. Dual theme display adapts to different light environments
10. NCV function
11. 18650 lithium battery meeting the needs of extended operations.
Specification
| General |

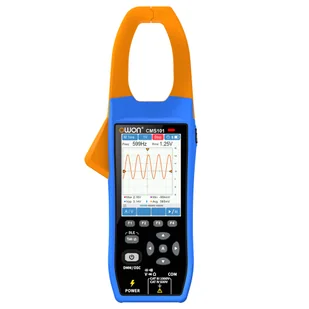

Brand: OWON
Type: Digital Clamp Meter
Model: CMS101
Color: Blue |
| Specification |
Multimeter Specification
DC Voltage (V): 20.000mV/200.00mV/2.0000V/20.000V/200.00V/1000.0V
AC Voltage (V): 200.00mV/2.0000V/20.000V/200.00V/1000.0V
DC Current(A): 20.00A/200.0A/1000A
AC Current (A): 20.00A/200.0A/1000A
Inrush Current (A): 20.00A/200.0A/1000A
Resistance (R): 200.00Ω/2.0000kΩ/20.000kΩ/200.00kΩ/2.0000MΩ/20.000MΩ/100.00MΩ
Capacitance(F): 2.000nF/20.00nF/200.0nF/2.000uF/20.00uF/200.0uF/2.000mF/20.00mF
Frequency (Hz): 200.00Hz/2.0000kHz/20.000kHz/200.00kHz/2.0000MHz/20.000MHz
Duty Cycle: 0.1%-99.9%(Typical:Vrms=1 V,f=100Hz); 0.1%-99.9%(≥1kHz)
Oscilloscope Specification
Analog bandwidth: 1kHz
Sample mode: Real-tine sample
Real-time sampling rate: 5.0Msa/5
Channel: 1
Input impedance: 10MΩ
Maximum input voltage: 1000V
Maximum sample current: 1000A
Scan speed: 2.5us/div~10S/div
Time base accuracy: ±(0.01% 0.1div)
Sensitivity: 30mV/div~500V/div
Displacement range: ±3grid
Sensitivity accuracy: ±(5% 0.2div)
Measurement value: Rms, Period, Freq, Max, Min, PK-PK, Avg
Trigger mode: Auto
Trigger type: Rise, Fall
|
| Weight & Size |
Product Weight: 0.35kg
Package Weight: 0.8kg
Package Size(L x W x H): 30x13.3x8cm |
| Package Contents |
1 x Digital Clamp Meter
1 x USB Cable
1 x Quick Guide
1 x Multimeter Leads |
