ARTPOL GWINTOWNIK M 6x0,75mm kpl.2szt.

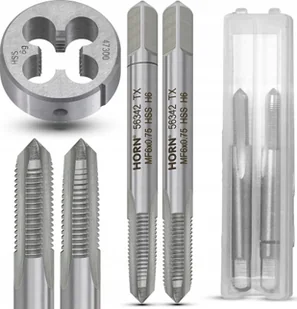

. flex-container {display: flex; padding: 3%;} . flex-item {flex: 1; padding: 2%;} . content-image {max-width: 100%;height: auto;}PLOTTERS + THREAD Die M6x0. 75 HSS HAND SETMetric plotter M6x0. 75: Technical specification:

thread type: metric ordinary right-handed. hardness: 60HRc (+/-1). number of chip grooves: 3. thread profile:

60 angle. material: NC6 tool steel (W-1.2063). Included: 1Die No. 1 (tap) 2Die No. 2 (finisher) dedicated plastic case Standards: Compliant with DIN-2181/2-P. Thread standard:

ISO DIN-13. Thread tolerance: ISO2 (6H). The recommendedhole diameterfor threading is5. 0 mm. Dimensions (technical drawing): thread (d1):

M6. thread pitch (P): 0. 75 mm. total length (l1): 56 mm. handle length (l2): 8 mm. handle diameter (d2): square 4. 9 mm. Metric thread die M6x0.

75: Technical specification: thread type: metric ordinary right-handed. hardness: 60HRc (+/-1). chaser: 1. 75P. thread profile:

60 angle. material: NC6 tool steel (W-1.2063). dedicated plastic case included. The thread die has mounting holes for use in threading holders with20x7mmslots. Standards: Compliant with DIN-EN 22 568. Thread standard:

ISO DIN-13. Thread tolerance: ISO (6g). Dimensions (technical drawing): tapped thread (d1): M6. thread pitch (P) -0.

75 mm. outer diameter (d2): 20 mm. die thickness (h1): 7 mm. chip slots (W): 4. recommended shaft diameter for threading: 5. 88 mm.
