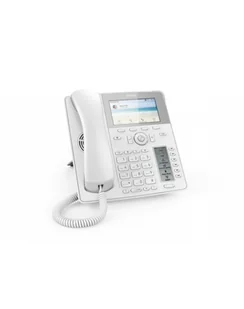

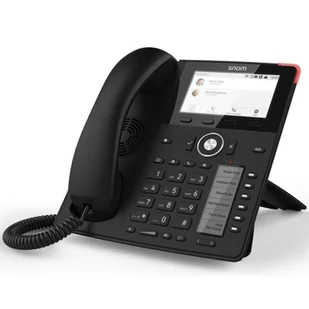

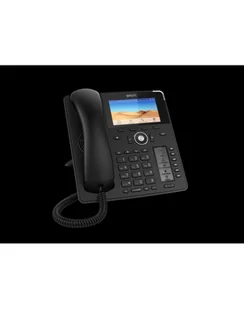

Snom D785

• kolorowy wyświetlacz o wysokiej rozdzielczości
• 6 (24) konfigurowalne, samo-oznaczające się, wielokolorowe klawisze podświetlane LED
• port USB
• możliwość połączenia bluetooth
• elegancki projekt

• 3 letnia gwarancja
• dostępność produktu i szybka dostawa
• niezawodny sprzęt
• opracowany i zaprojektowany w Berlinie
• centrum danych zlokalizowane w UE
• darmowa pomoc 24H helpdeask@snom.com
• dostęp do Snom Service Hub https://service.snom.com/

Benefits

• High-resolution 4.3" TFT-colour display
• Dedicated displays for extension monitoring
• Up to 24 BLF keys (6 physical)
• Improved graphical user interface
• Dual-angle footstand: 46° and 28°
• Wall mountable
• Wideband hands-free talking
• Digital Signal Processor (DSP) ehanced audio quality
• 2-port 1-Gigabit Ethernet switch (RJ45) IEEE 802.3
• Power over Ethernet IEEEaf, Class 3
• USB headset ready
• D7 Expansion Module ready
• Support for USB WiFi stick
• Electronic Hook Switch (EHS) support for wireless headsets
• Built-in Bluetooth compatibility

Firmware

Features

• 12 SIP identities / accounts
• XML browser
• Call lists for dialed, received and missed calls
• Local directory with 1000 entries
• Multiple language support
• DTMF in-band / out-of-band / SIP-INFO
• Interoperable with all major IP PBX platforms

Call Features

• Speed dialing
• URL dialing
• Local dial plan
• Automatic redial on busy
• Call completion (busy/unreachable)
• Caller identification
• Call waiting
• Call blocking (deny list)
• Auto answer
• Hold
• Music on hold
• Handling of up to 12 simultaneous calls
• Blind and attended transfer
• Call forwarding
• 3-way conferencing on the phone
• Extension monitoring, call pickup
• Call park, call unpark
• Multicast paging
• DND mode (do not disturb)
• Keyboard lock
• Client matter code (CMC)

Audio

• Codecs
  • G711 A-Law, u-law
  • G.722 (wideband)
  • G.726, G.729AB, GSM 6.10 (FR)
  • Built-in assignable ringtones
  • Comfort Noise Generator (CNG)
  • Voice Activity Detection (VAD)

Setup

• Configurable through web interface
• Provisioning:
  • Automatic loading of settings via HTTP/HTTPS/TFTP
  • DHCP Options 66/67
  • Snom Redirection Service
  • Remote management via TR-069 / TR-111

Specifications

Protocols

• SIP (RFC3261)
• DHCP, NTP
• HTTP / HTTPS / TFTP
• LDAP (Directory)
• Dual Stack IPv4 / IPv6

User Interface

• Localization (language, time, dial tone)
• Red LED for call indication /message waiting
• 4 context-sensitive keys
• 6 programmable line / function keys with multicolour LEDs
• Dedicated keys for: Message; DND, Directory, Menu, Transfer; Hold, Page switch
• Audio keys with LED indicator: Mute, Speakerphone, Headset
• Volume key
• 5-way navigation key
• OK and Cancel keys
• Menu-driven user interface



Security

• 802.1X authentication and EAPOL
• Transport layer security (TLS)
• SRTP (RFC3711), SIPS, RTCP
• HTTPS server/client
• Password-protected web interface
• VPN-support
• VLAN (IEEE 802.1Q)
• LLDP-MED, RTCP-XR

Phone Features

• Dimensions (approx:)
  • 230 x 205 x 90 mm (LxWxD) w/o foot stand
  • 190 x 205 x 200/220 mm (LxWxD) with food stand
• Weight (approx.) device 750 g, footstand 140g
• Input voltage (5Vdc) (SELV)
• Power supply: PoE or 5Vdc power adapter, 10 Watts
• Handset: 4P4C
• Headset: 4P4C; 4pin for Snom EHS Advanced
• Hearing-aid compatible (HAC) handset
• 1x USB 2.0 host port, Type A, Hi/Full/Low-Speed
• Environmental conditions:
  • Ambient temperature: 0°C to 35°C (32°F to 95°F)
  • Storage temperature: -10°C to 45°C (14°F to 113°F)
  • Humidity: 5% to 95% (non condensing)
• Included delivery
  • Phone unit
  • Footstand
  • Handset with cord
  • Ethernet cable
  • Quick Start Guide
• Colour: Black
• Warranty: 2 Years
• Part Number: 00004349 (all markets)

Type Approvals

• CE Mark
• FCC Class B
• Safety IEC 60950, CB

Part numbers for optional accessories

00004011 D7 Expansion Module (black)
00004326 Power Adapter Snom A6 / EU clip
00004326 Power Adapter Snom A6 / US clip
00001168 UK clip for Snom A6
00001167 AUS clip for Snom A6
00002362 Snom EHS Advanced
00003820 Wallmount plate for 7.series
00004341 A100M Headset
00004342 A100D Headsets
00004343 ACUSB Headset adaptor

(1) Optional accessory (see below for part numbers)

(2) If supported by PBX
